    SH-60S-AOA

    Handheld Spectrum Analyzer

    Defeat RF Interference

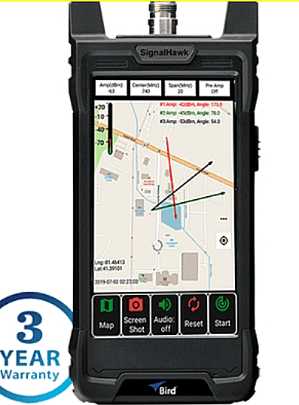

    The SH-60S-AOA provides the ability to triangulate the location of an interferer on a map for signals between 9 kHz and 6 GHz. Integrating digital maps, GPS location and signal strength vectoring, the SignalHawk AOA provides an easy-to-use interface to pinpoint potential in-band interferers, “rogue” broadcast locations and dead spots.

    Field engineers, technicians, wireless equipment manufacturers, service providers, contractors, and military personnel can triangulate the source of an interferer by utilizing our AOA (Angle of Arrival) technology. Being highly portable allows the user to go remote locations to accurately pinpoint the signal origination. In today’s crowded RF spectrum this cutting edge technology can quickly and efficiently stop unwanted, accidental or prohibited interface that can degrade RF communication or completely disrupt signal quality and system performance.

    FEATURES

    • Leverages mapping technology from OpenStreetMap allowing users to triangulate the source.
    • Two level internal preamplifier.
    • View the spectrum with trace display, spectrogram display, or both.
    • Easy-to-use, intuitive menus with multi-touch operation.
    • More than 2x faster sweep times than the competition with multi-touch technology.
    • High-resolution, full-color display for indoor or outdoor viewing.
    • Rugged and weather resistant.
    • 5 hours of continuous battery operation.
    • Includes the Bird RF Meter App for interoperability with a wide range of Bird Field sensors.

    PREDEFINED MEASUREMENTS

    • Channel Power
    • Adjacent Channel Power Ratio (ACPR)
    • Phase Noise
    • N dB Down Bandwidth
    • Occupied Bandwidth (OBW)
    • Field Strength
    • FM Demodulation
    • CNR Loss (GNSS Signal Quality)
    • Spectrum Masking and Limit Lines

    Item No  SH-60S-AOA
    Item Name Hand-Held Spectrum Analyzer
    Frequency
      Range: 9 kHz to 6 GHz
      Span Accuracy: ±1%
    Aging  ±1 ppm
    Sweep Time
      1.1 ms to 1600 s Full Span
      2.69 ms to 1600 s Settable Zero Span
    Resolution Bandwidth  10 Hz to 5 MHz in 1, 2, 3, 5, 10 Steps
    Accuracy: ≥1 MHz, ±10% (<1 MHz, ±2%)
    Second Harmonic Distortion  1.6 GHz -70 dBc
    Third-Order Intercept --TOI
      +15 dBm (–10 dBm tones, 1 MHz apart, Preamp Off, Reference Level –10 dBm)
    P1dB  +5 dBm (nom)
    Phase Noise --1GHz
      -96 dBc/Hz,@10 kHz (typical -97 dBc/Hz)
      -115 dBc/Hz,@1 MHz (typical -116 dBc/Hz)
