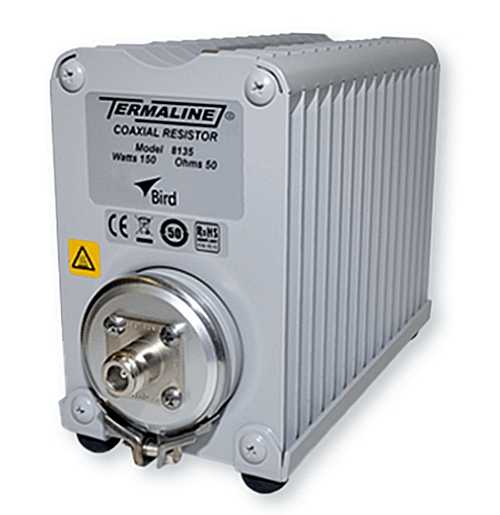

The Model 8135 is a rugged, self-contained coaxial RF load designed for general-purpose testing up to 4 GHz. Built for versatility on the bench or in the field, it’s ideal for aligning transmitters, simulating antenna loads, and performing non-radiating system checks.
Its oil-dielectric design supports reliable 150-watt continuous operation without external power, ensuring consistent performance in demanding RF environments.
Bird 8201 Termaline® RF Coaxial Termination
Model Number 8135
VSWR - DC to 1 GHz @ 1.10 max
1 to 2.5 GHz @ 1.2 max
2.5 to 4 GHz @ 1.3 max.
Input Connector Type N(f) QC
Impeadance 50 Ohms
Dimensions 9.6 in x 4 in x 6.5 in
(243 mm x 102 mm x 164 mm )
Weight 6.0 lb (2.7 kg)
