RF Power Testing Redefined!
Next generation display for power measurement with automatic sensor detection.

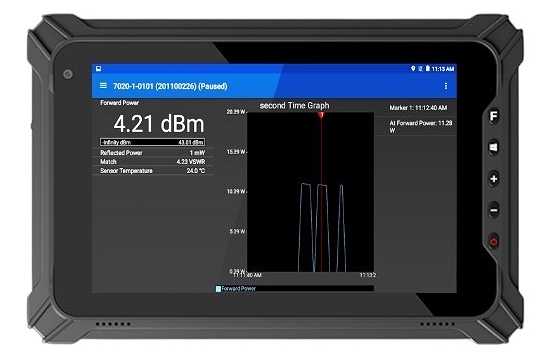

Bird’s new 5000-XR-WD RF Power Meter Display transforms the way you
measure RF power. This hand-held portable meter captures, collects,
and displays RF power measurements on a touch screen, highresolution
display, allowing you to review quickly and easily data in
the field or in an R & D lab environment.
Operating over a broad frequency range using one of Bird’s USB
RF power sensors, the 5000-XR-WD allows you to quickly measure
True Average Power, VSWR, Return Loss, and more.
This fully digital power meter automatically detects the sensor in
use and saves session information. The Android operating system
makes it easy to share data via Bluetooth, USB, or email.
The large, sunlight readable color touch screen puts measurements
at your fingertips. For secure locations, the 5000-XR-WD is available
which disables all wireless and camera capabilities of the display.
Compatible with most Bird RF Power sensors; 5014, 5012D, 5016D, 5017D, 5018D, 5019D, 7020-1-010101, 7020-1-030301 and other similar Bird RF power sensors.
Bird’s new 5000-XR RF Power Meter Display transforms the way you perform RF power meter testing. A giant leap forward, this hand-held portable meter captures, collects, and displays RF power measurements on a touch screen, high-resolution display, allowing you to review quickly and easily data in the field or in an R & D lab environment.
Operating over a broad frequency range using one of Bird’s USB RF power sensors, the 5000-NG allows you to quickly measure True Average Power, VSWR, Return Loss, and more.
This fully digital power meter automatically detects the sensor in use and saves session information. Take RF power measurements, enable smoothing level for more stable readings, or max hold to detect the maximum power.

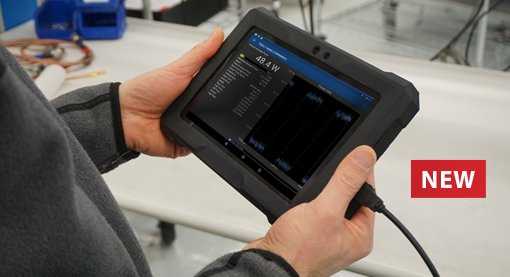

Bird's new portable lightweight tablet features a large, sunlightreadable color touch screen. This easy-to-use, intuitive interface saves time and ensures a fast learning curve for technicians.
NOTE: RF Power Sensors are not included, they are available in our online store. There are several models to select from depending on the frequency range and power range required.
PRODUCT FEATURES
Rugged, 8” color touch screen display for worry-free field use
■ Automatic sensor detection that works with 12 supported Bird field sensors
■ Field-swappable battery for extended use
■ Built-in camera to document equipment serial numbers and model number
for warranty documentation and installation validation.
■ Tried and true power measurement with simple set-up
■ Data logging, numerical & graphics display
■ Easy data transfer via USB, Bluetooth, or WiFi
■ Model 5000-XR-WD disables all wireless and camera capability for work in secure
sites
